14 Jul 2023


Lantronix Stand: C43
  • SM12XPA
  • SM12XPA
  • SM12XPA

Move More Data: Reduce Backbone Infrastructure

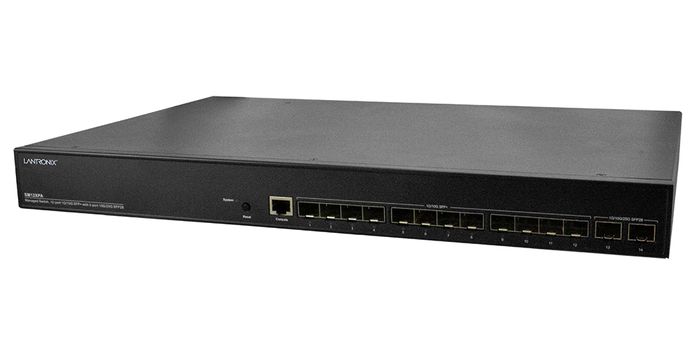

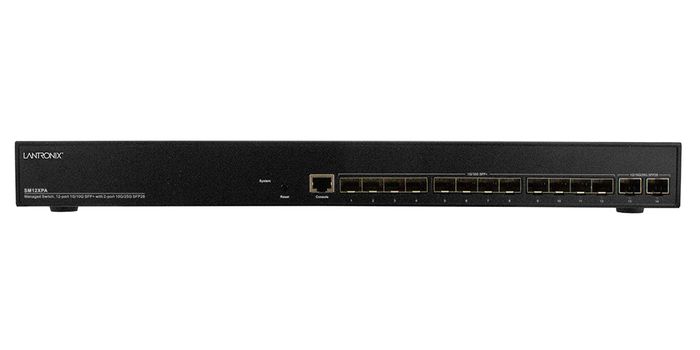

The SM12XPA switch provides 340 Gbps switching capacity with (12) 1G/10G SFP+ and (2) 1G/10G/25G SFP28 slots and (1) RJ-45 console port. It offers high performance and reliability for high bandwidth aggregation and access network applications. The 10G and 25G SFP links provide the necessary backbone capacity to meet the high traffic needs of modern connected access switches.

Rapid Network Conversion

High performance IP unicast routing using OSPF and RIP enables devices to dynamically learn and exchange routing information for rapid network convergence. This improves efficiency and productivity.

Smart Device Management

The embedded Device Managed System (DMS) software is easy to use and simplifies configuration, installation, and troubleshooting of devices in applications with high fiber density. The SM12XPA offers an improved user experience, and lowers operating and maintenance costs.

Security and Seamless Integration

A RESTful API is available for integrating and managing the switch through third-party tools. It also supports enhanced security features such as IP source guard and Access Control Lists to guard networks against unauthorized access.
