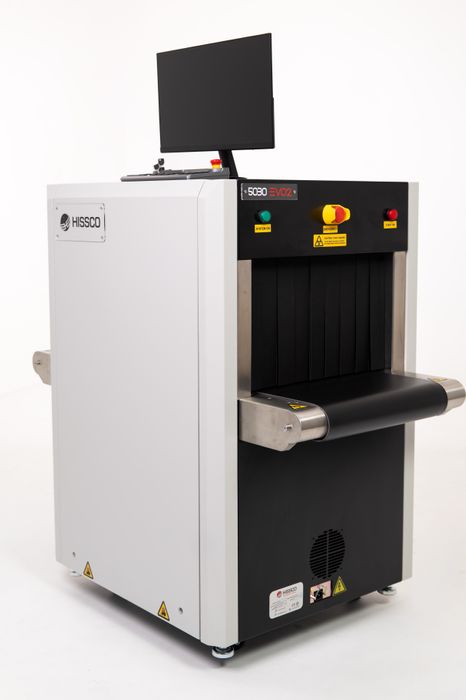

The HS 5030 EVO2 is the most compact baggage X-ray system available, developed specifically for limited-space environments where a standard checkpoint machine cannot physically be sited or installed. It passes through an 825mm standard door frame and fits small to medium-sized lifts, making it viable in mailrooms, reception areas, upper floors and retrofitted buildings without structural alteration or crane access.

The EVO2 replaces the previous legacy HS 5030 range with an entirely new design, retaining best-in-class imaging performance while adding a touch screen interface, remote diagnostics, optional AI item recognition and increased belt speed.

RedteQ Analytical is exclusive UK and Ireland distributor for Hissco X-ray systems, supplying the HS 5030 EVO2 for purchase or hire with installation, commissioning, radiation compliance testing, operator training and full maintenance support.

Where it fits

Mailrooms and post rooms, corporate and government reception, courts, embassies, museums and galleries, schools and universities, hospitals, data centres, custodial visits areas, and temporary or event checkpoints. Also suited to sites where screening must be added to an existing building with restricted access routes.

Imaging and detection

• Dual-energy technology with organic/inorganic material stripping and colour discrimination.
• 1280 x 1024 x 24-bit image resolution.
• Automatic threat and density alert with Operator Assist (OA).
• High Organic Mass Alert (HOMA) for bulk organic detection.
• Picture Pure screening technology and super edge enhancement.
• Ultra-thin object scanning using micro photo sensors.
• Dynamic zoom 2x–64x, plus one-click full screen zoom.
• High and low penetration modes; colour, black, white and inverse display.
• Guaranteed penetration 36mm steel (38mm typical); guaranteed wire resolution 40 AWG (42 AWG typical).

AI and operator development

• Optional Artificial Intelligence item recognition, flagging threat items automatically on the operator screen.
• Threat Image Projection (TIP) library for covert operator testing and continuous competency assessment.
• CIRTS Computer Item Recognition Training Software built in, allowing operator training to be delivered on the machine itself rather than requiring separate classroom systems.

Networking, archiving and management

• Network ready for centralised image review, remote screening and estate-wide management.
• Remote diagnostics capability, reducing engineer callouts and downtime.
• 500,000 image storage capacity as standard, with image search and simulated playback for incident investigation and audit.
• Image conversion and export to JPG, PNG and BMP; printer ready.
• Automatic 100-image screen recall.
• Complete automatic self-diagnostics.
• Multi-language support.

Specification

• Tunnel size: 504mm (W) x 320mm (H).
• Overall dimensions: 1190mm (L) x 728mm (W) x 1197mm (H).
• Weight: 250kg uncrated.
• Conveyor height 693mm; maximum load 200kg evenly distributed.
• Conveyor speed 0.22 m/s standard, extendable to 0.50 m/s.
• X-ray generator: 100–160 kV adjustable, 0.3–1.2 mA adjustable, sealed oil bath cooling, 100% duty cycle with no burn-in required. 80-degree beam launch angle.
• Power: AC 220V, 50/60Hz, 0.5 kVA. Standard UK supply — no special provision required.
• Working temperature 0°C to 45°C; noise level under 55 dB, suitable for occupied office environments.
• Leakage under 0.5 µSv/h; dose per inspection under 1.5 µSv typical.

Options

21" high-resolution touch screen interface, AI item recognition, entry and exit roller tables built to any length, uninterruptible power supply, tunnel guards, extended belt speed to 0.50 m/s.

Compliance and warranty

CE certified (Europe), manufactured to ISO 9001:2015 TÜV standards, FDA 21CFR Part 1003/1004 approved. Radiation safety compliant with directives 2014/30/EC, 2014/35/EC and 2006/42/EC. Film safe to ISO 1600 / 33 DIN. Five years parts inclusive warranty.

Available to buy or hire from RedteQ Analytical. Contact info@redteq.com or 0800 161 5512 for specification advice, site survey and demonstration.
