Two views, one pass

The HS 8065DV EVO2 is a large-aperture dual-view X-ray system for hold baggage, oversized items and freight screening. Two X-ray generators — one vertically downward, one horizontal — produce simultaneous orthogonal images of every item. Threats concealed by orientation, such as a blade presented edge-on to a single-view beam, are revealed on the second image without the operator stopping the belt, repositioning the bag and rescanning.

For high-throughput screening points this is the difference between a queue that moves and one that doesn't: fewer rescans, fewer unnecessary bag opens, and faster, more confident operator decisions on complex items.

The 810mm x 660mm tunnel accommodates hold baggage, large suitcases, oversized parcels, equipment cases and freight. The 300mm low conveyor height allows heavy items to be loaded without lifting, reducing manual handling risk for screening staff working long shifts.

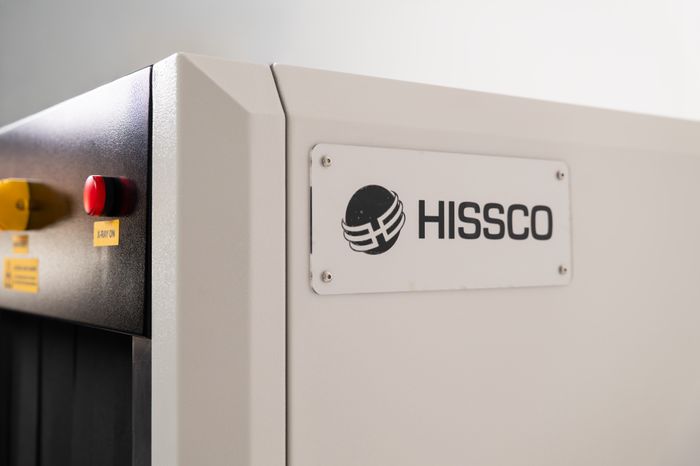

RedteQ Analytical is exclusive UK and Ireland distributor for Hissco X-ray systems, supplying the HS 8065DV EVO2 for purchase or hire with installation, commissioning, radiation compliance testing, operator training and full maintenance support.

Where it fits

Airports and hold baggage screening, rail and transport hubs, ports and border points, government buildings and embassies, banks, hotels and casinos, stadia and event venues, goods-in and delivery screening, mail and parcel consolidation points, and any high-transit location where the item profile is too large or too varied for a checkpoint machine.

Imaging and detection

• Dual-view imaging with dual-energy high-definition detectors.
• Organic/inorganic material stripping and colour discrimination.
• 1280 x 1024 x 24-bit image resolution.
• Automatic threat and density alert with Operator Assist (OA).
• High Organic Mass Alert (HOMA) for bulk organic detection.
• Picture Pure screening technology and super edge enhancement.
• Dynamic zoom 2x–64x, plus one-click full screen zoom.
• High and low penetration modes; colour, black, white and inverse display.
• Guaranteed penetration 36mm steel (38mm typical); guaranteed wire resolution 40 AWG (42 AWG typical).

AI and operator development

• Optional Artificial Intelligence item recognition, flagging threat items automatically on the operator screen.
• Threat Image Projection (TIP) library for covert operator testing and continuous competency assessment.
• CIRTS Computer Item Recognition Training Software, allowing operator training and dual-view interpretation practice to be delivered on the machine itself.

Networking, archiving and management

• Network ready for centralised image review, remote screening and estate-wide management.
• Remote diagnostics capability, reducing engineer callouts and downtime.
• 500,000 image storage capacity as standard, with image search and simulated playback for incident investigation and audit.
• Image conversion and export to JPG, PNG and BMP; printer ready.
• Automatic 100-image screen recall.
• Complete automatic self-diagnostics.
• Multi-language support.

Specification

• Tunnel size: 810mm (W) x 660mm (H).
• Overall dimensions: 2780mm (L) x 1475mm (W) x 1440mm (H).
• Weight: 1000kg uncrated.
• Conveyor height 300mm; maximum load 200kg evenly distributed.
• Conveyor speed 0.22 m/s standard, extendable to 0.50 m/s.
• X-ray generator: 100–160 kV adjustable, 0.3–1.2 mA adjustable, sealed oil bath cooling, 100% duty cycle with no burn-in required. Beam launch: (1) vertically downward and (2) horizontal.
• Power: AC 220V, 50/60Hz, 0.5 kVA. Standard UK supply.
• Working temperature 0°C to 45°C; noise level under 55 dB.
• Leakage under 0.5 µSv/h; dose per inspection under 1.5 µSv typical.

Options

Twin 21" high-resolution touch screen interfaces (one per view), AI item recognition, Threat Image Projection, entry and exit roller tables built to any length, uninterruptible power supply, tunnel guards, extended belt speed to 0.50 m/s.

Compliance and warranty

CE certified (Europe), manufactured to ISO 9001:2015 TÜV standards, FDA 21CFR Part 1003/1004 approved. Radiation safety compliant with directives 2014/30/EC, 2014/35/EC and 2006/42/EC. Film safe to ISO 1600 / 33 DIN. Five years parts inclusive warranty.

Available to buy or hire from RedteQ Analytical. Contact info@redteq.com or 0800 161 5512 for specification advice, site survey and demonstration.
