HiSec Super PAS68 Permenant HVM Fencing
)
)
)
Tested and certified to PAS 68:2010, the system stopped a 2.5-tonne vehicle travelling at 48 km/h, approximately 30 mph, with zero penetration recorded in the test.
Integrated perimeter protection
The HVM springs are incorporated into the fencing system, allowing the fence and vehicle mitigation elements to share a single foundation arrangement. This supports perimeter protection where space is restricted and both vehicle threats and pedestrian intrusion need to be addressed.
HiSec Super 6 panels use 6 mm vertical wires and 4 mm horizontal wires, with a closely spaced 76.2 × 12.7 mm mesh aperture to deter climbing and provide a physical barrier against attack.
The system is available in nominal above-ground heights from 2.4 to 3.6 metres. All panels extend a further 300 mm below ground.

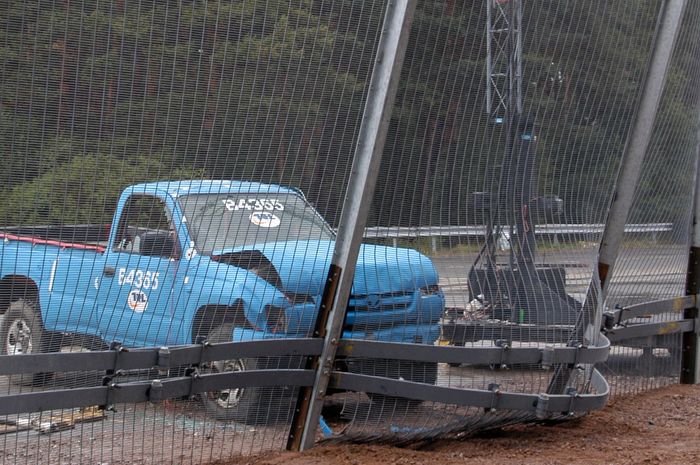

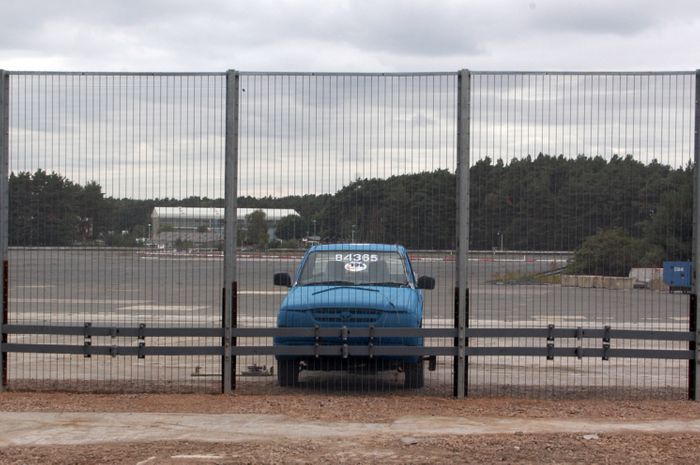

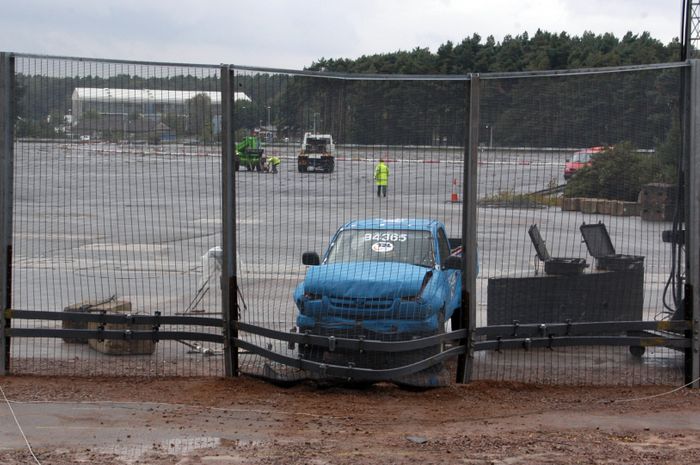

Vehicle impact testing
- Standard: PAS 68:2010
- Test vehicle: 2,500 kg, category N1G
- Impact speed: 48 km/h, approximately 30 mph
- Impact angle: 90°
- Recorded vehicle penetration: 0.0 m
- Classification: V/2500[N1G]/48/90:0.0/0.0
The impact rating applies to the tested configuration. Foundations, components and installation details must follow the relevant tested arrangement.
Product specification
- Above-ground heights: 2,438 mm, 2,705 mm, 2,997 mm, 3,302 mm and 3,607 mm
- Nominal above-ground heights: 2.4 m, 2.7 m, 3.0 m, 3.3 m and 3.6 m
- Panel burial: 300 mm below ground
- Mesh aperture: 76.2 × 12.7 mm
- Vertical wire diameter: 6 mm
- Horizontal wire diameter: 4 mm
- Panel size: 2,515 mm
- Posts: 140 × 120 mm flanged
- Clamp bars: 140 × 5 mm
- Post centres: 2,570 mm
- Top edge: minimal projections
The datasheet lists a foundation dimension of 1,000 mm. Full foundation drawings and site requirements should be confirmed with Zaun during specification.
Protective finish
Posts, panels and painted ancillary components receive a protective zinc layer and an electrostatically applied polyester powder coating to BS 1722-16. Enhanced coating systems, including marine coatings, are available for more demanding environments.
Regular washing and prompt repair of coating damage help maintain the protective finish and extend service life.
For specification support, test information and project enquiries, contact Zaun on +44 (0)1902 796 699 or email info@zaun.co.uk.
