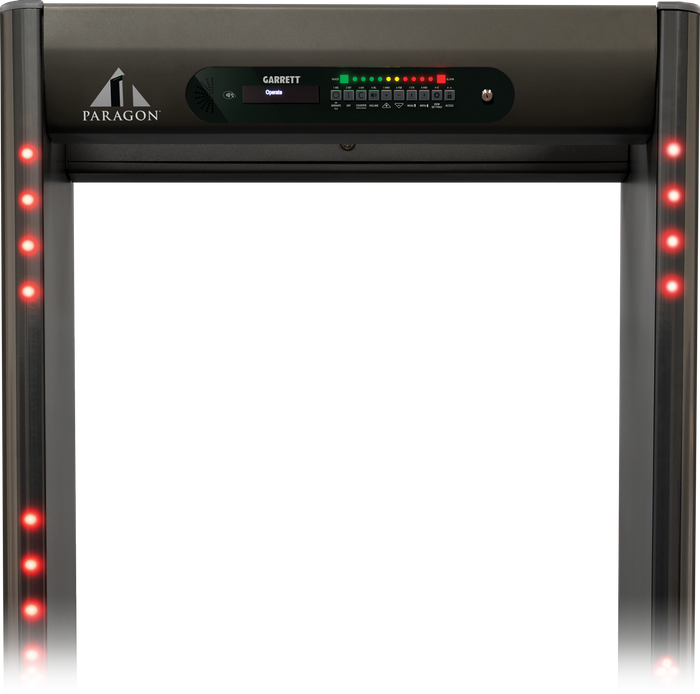

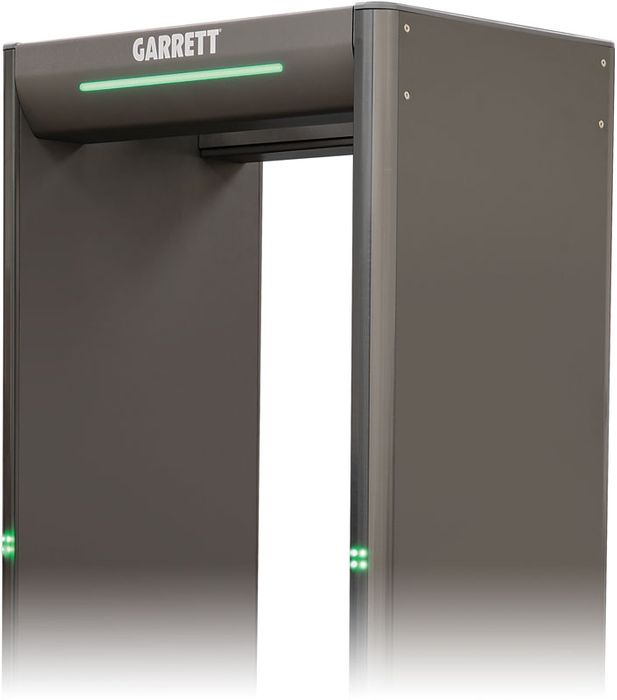

The Paragon is Garrett's flagship walk-through metal detector, designed for security operations that cannot compromise on detection performance while still moving people through the checkpoint. It combines the highest zone resolution available in security metal detection with an unusually wide configuration range, allowing a single unit to serve very different screening regimes across a site or an estate.

RedteQ Analytical is official UK distributor for Garrett security products, supplying the Paragon for purchase or hire, with installation, commissioning, operator training and ongoing maintenance support.

The Paragon advantage

• 66 detection zones — granular alarm indication top-to-bottom and left/middle/right, unmatched in security metal detection. Search officers know where the target is before they begin, cutting secondary search time and improving search consistency.
• Ambiscan™ directional detection — cuts checkpoint footprint in half by allowing different detection targets on egress versus ingress through the same archway. Directional sensitivity also reduces operator fatigue from alarms triggered by passing traffic.
• Bilateral detection — evenly distributed detection from both sides of the passageway, simplifying multi-unit checkpoint setup and delivering superior target analysis compared with single-sided systems.
• Cellphone discrimination — optional settings allow mobile phones to be ignored while still detecting mass casualty weapons, substantially reducing divest requirements and nuisance alarms at high-volume event and venue ingress.
• Zero Touch™ NFC card reader — secure settings adjustment without mechanical insertion, meaning less wear and fewer card replacements over the life of the unit.
• Integrated UPS — internally mounted one-hour emergency power maintains screening through accidental AC disconnection or power outage, critical where a lane going down means an uncontrolled entry point.
• IP65 weatherproofing (IEC 529) — dust and moisture protection for outdoor event, stadium and temporary checkpoint deployment.

Configuration and control

• Over 23 standard application programs covering aviation, custodial, courts, education, events and corporate screening.
• Up to 200 distinct sensitivity levels, with 22 independently adjustable zone sensitivity boosts for targeting specific body areas.
• Three levels of tamper-proof access control, protecting settings from unauthorised adjustment.
• Overhead control unit with all electronics — LED, alarm light, bar graph and touch pads — integrated to eliminate exposed wiring and tampering.
• Complete automatic self-diagnostic programme.
• Random alarm feature adjustable from 0 to 100 percent, supporting randomised secondary search regimes.

Deployment and specification

• Passageway interior: 30" (0.76m) wide standard, 32.5" (0.83m) ADA-compliant; 81.5" (2.07m) high, 23" (0.58m) deep.
• Overall exterior: 35" (0.90m) wide, 87" (2.21m) high, 23" (0.58m) deep. Assembled weight 152lbs (68.95kg).
• Quick-Swap battery packs: standard 1.8Ah module for approximately one hour of operation; optional 14Ah module for up to 10 hours. Both integrated, tamper-resistant and plug-and-play — enabling full-day mains-free operation at temporary and outdoor checkpoints.
• Fully automatic 100–240 VAC power, 50/60Hz, 60W. No rewiring or switching required for UK supply.
• Operating temperature -20°C to +55°C on AC; humidity to 95% non-condensing.
• Scratch and mar-resistant laminate finish; heavy duty aluminium detection head and support.

Compliance

Meets electrical safety and compatibility requirements for CE, FCC, CSA, IEC, ICNIRP and IEEE. DHS SAFETY Act Certified. Designed to meet international airport standards including DfT (UK), ECAC, STAC (France), AENA (Spain) and CJIAC (Japan). ECAC certification pending.

Applications

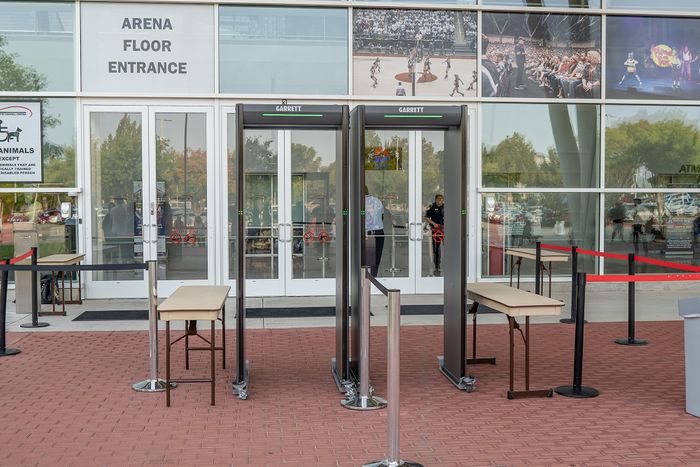

Airports and transport hubs, prisons and custodial facilities, courts and tribunals, government and MoD sites, stadia and event venues, schools and universities, corporate reception, data centres, and temporary or event checkpoints requiring rapid deployment.

Accessories

Adhesive floor mount kit (1630200), IR remote control (1169600), Quick-Swap 10hr battery pack (2238000), transportation brace (1630700), walk-through caster set (1169101), iC module wired/wireless (1171600), I/O relay module (1171200).

Available to buy or hire from RedteQ Analytical. Contact info@redteq.com or 0800 161 5512 for specification advice, fleet quantities and demonstration.
